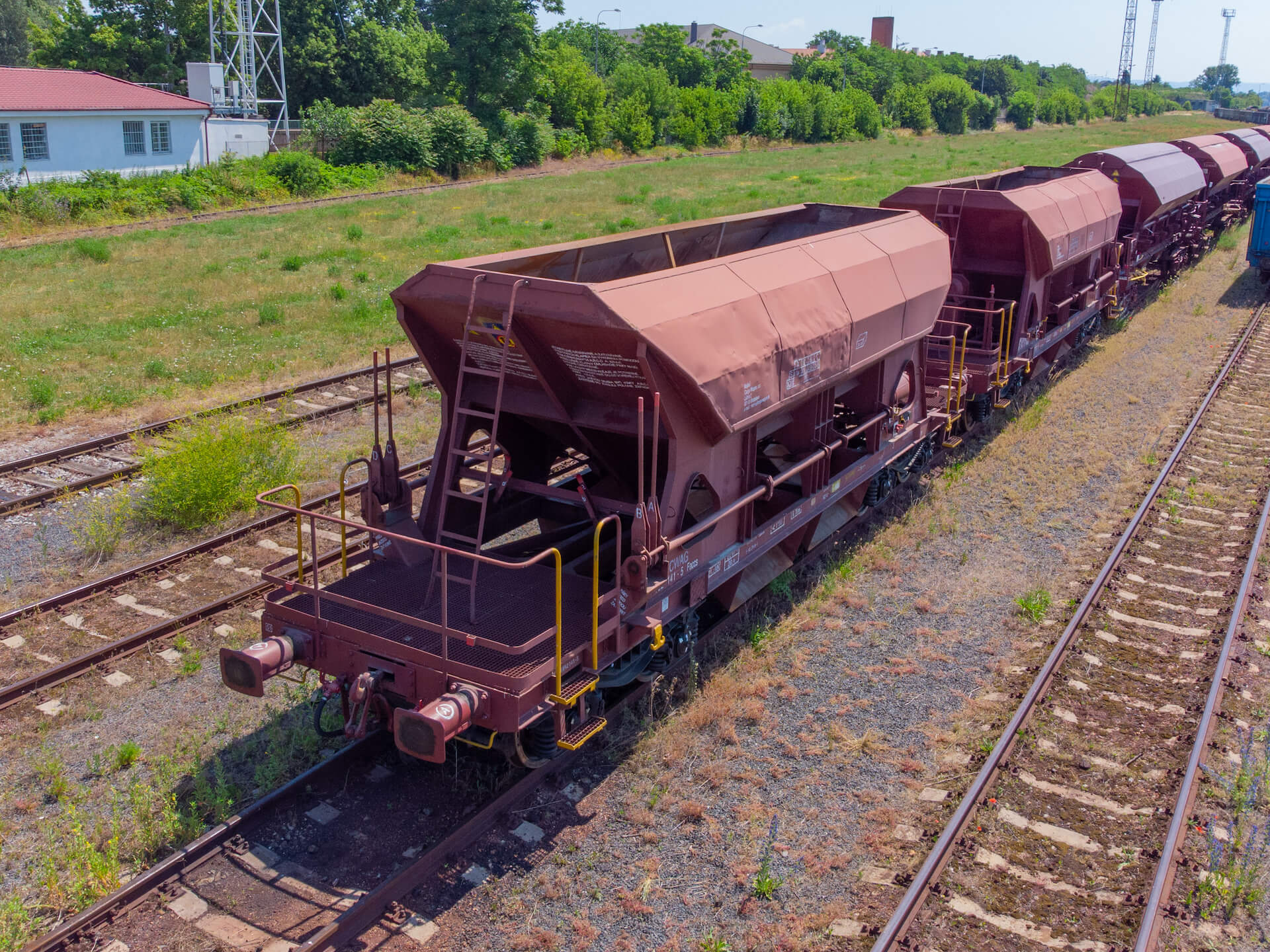

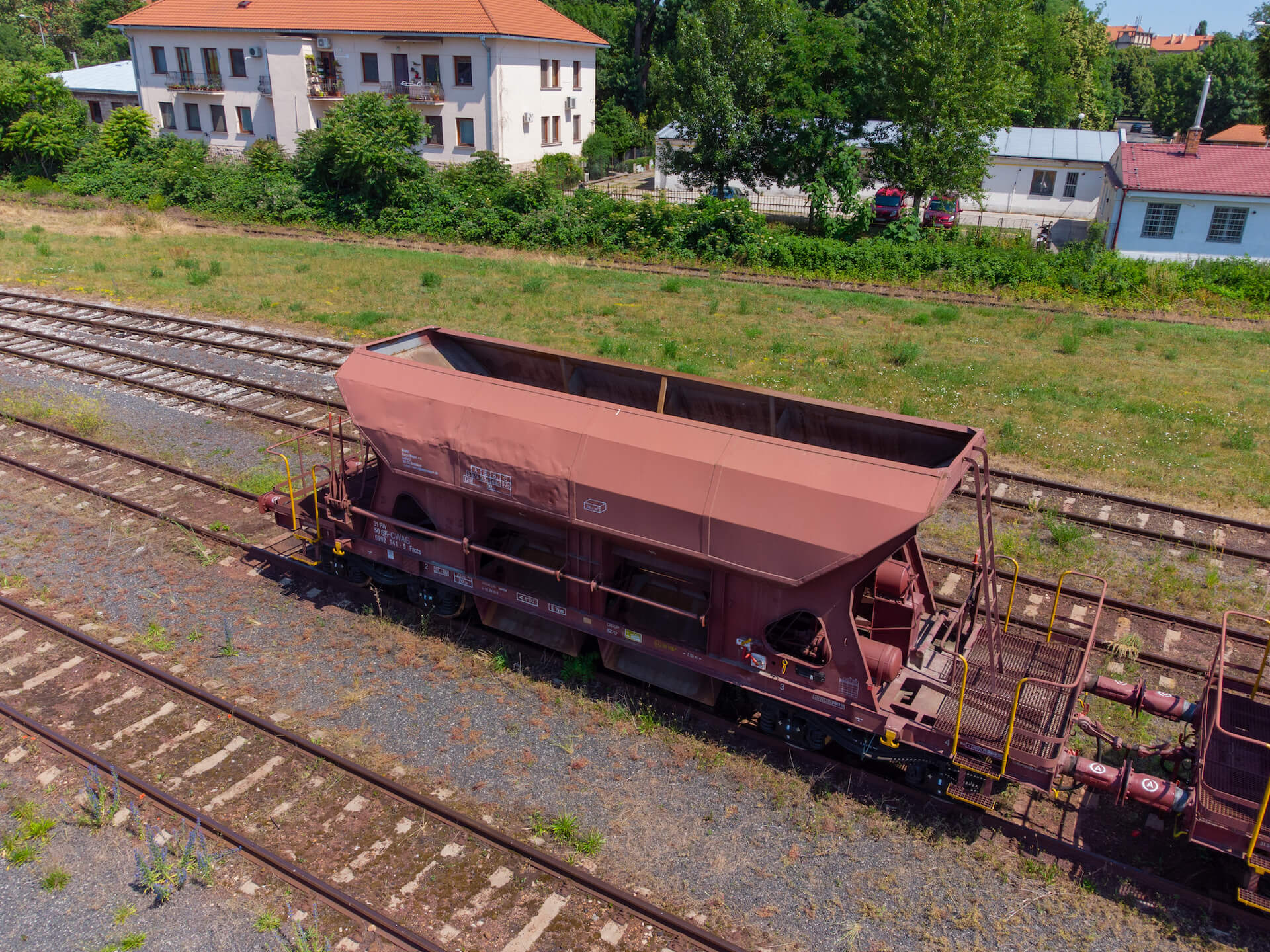

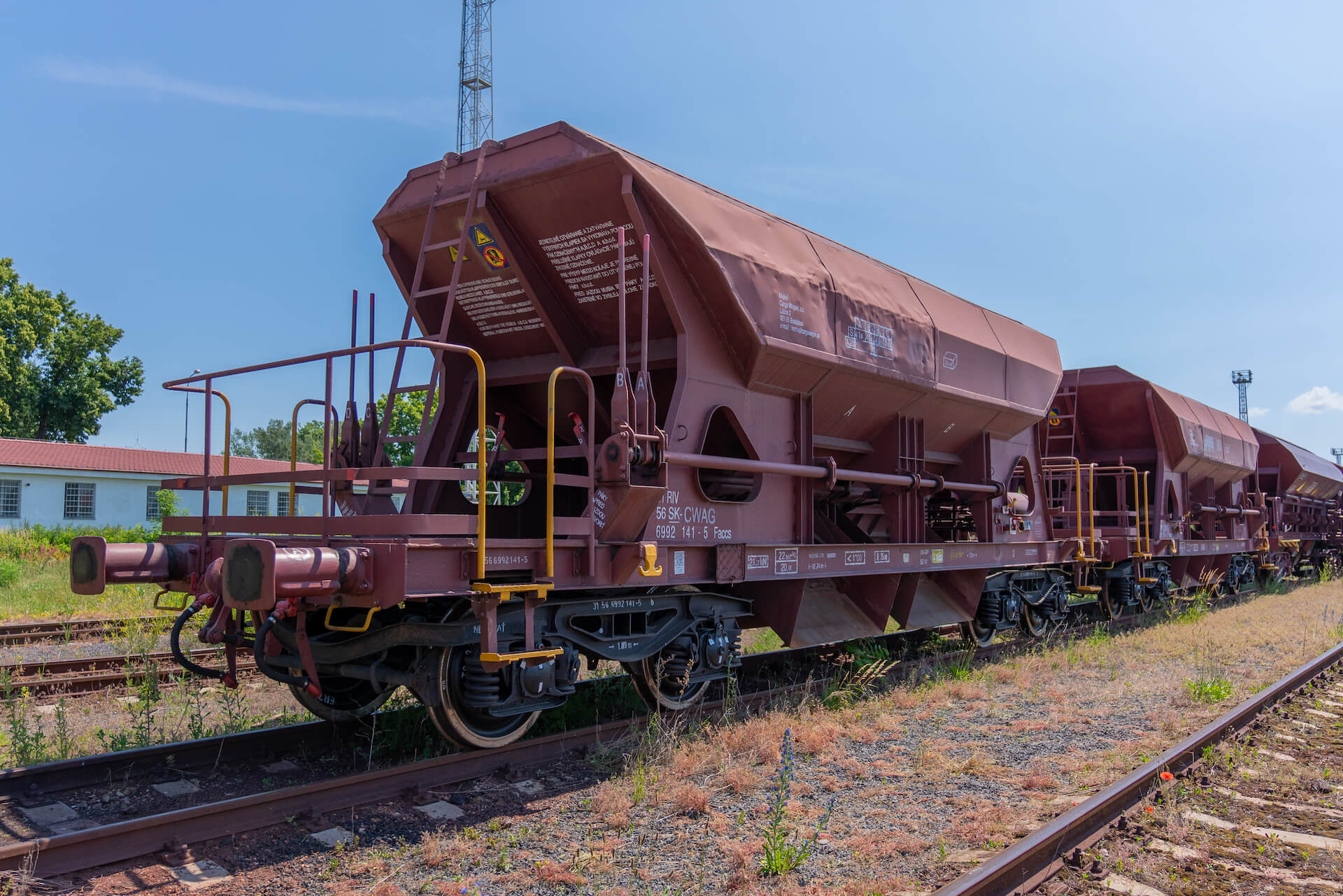

Open four-axle bogie wagon which is specially constructed.
It’s designed for the transport of bulk commodities that doesn’t require a covered area and protection against weather (ore, limestone, gravel, etc.).
The wagon design allows double-sided self-discharge by gravity of the goods.
The design also allows discharge between the tracks and while driving.

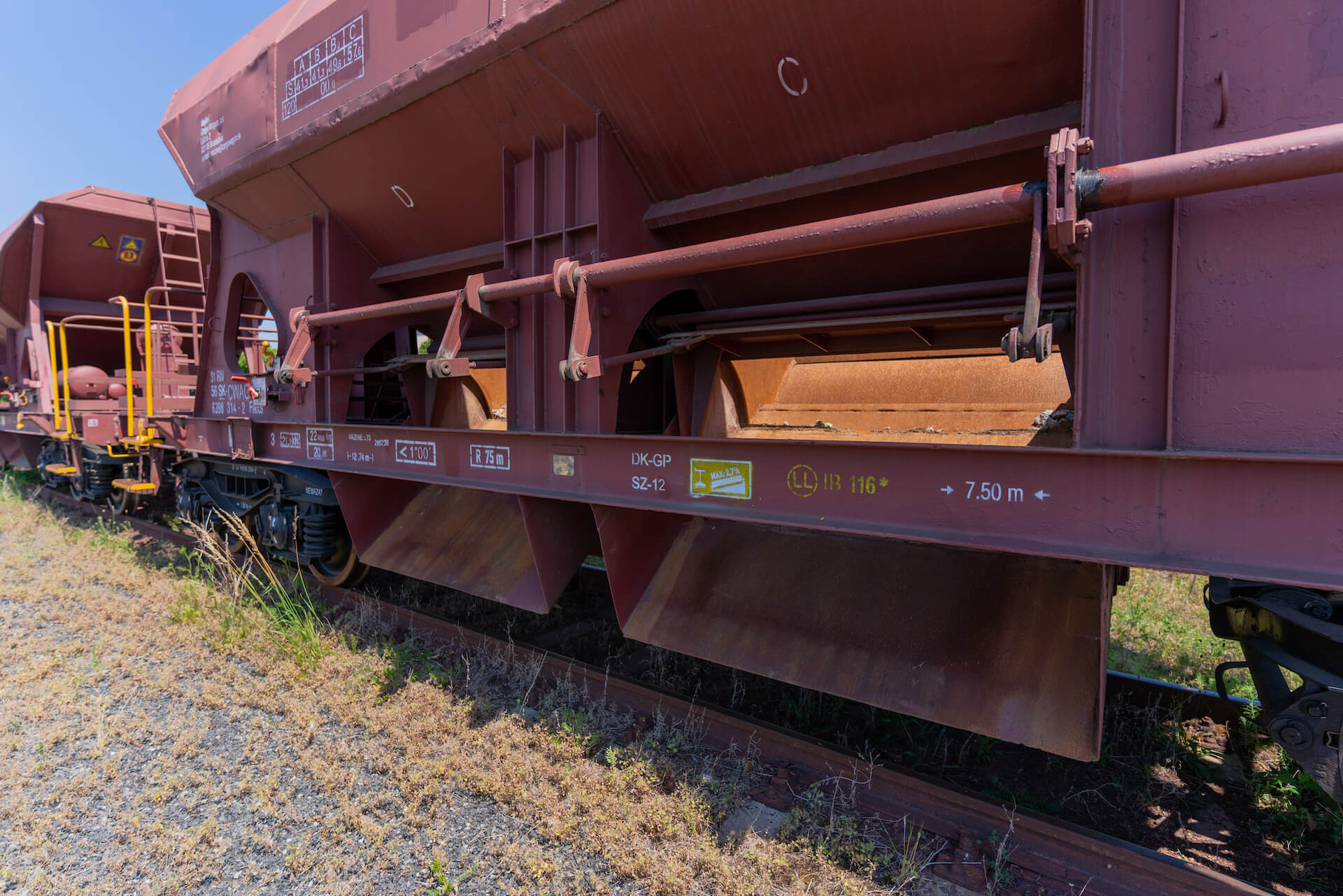

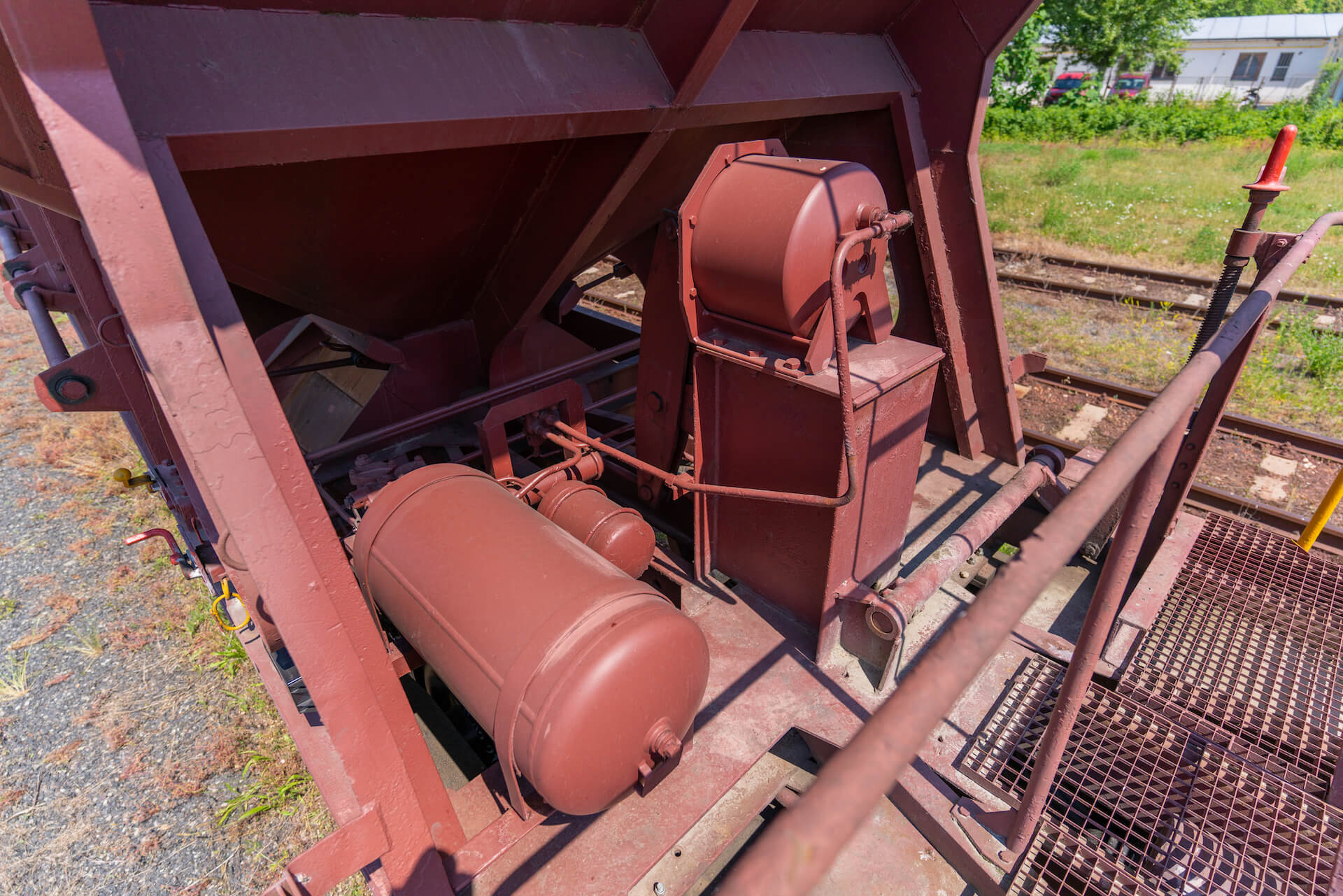

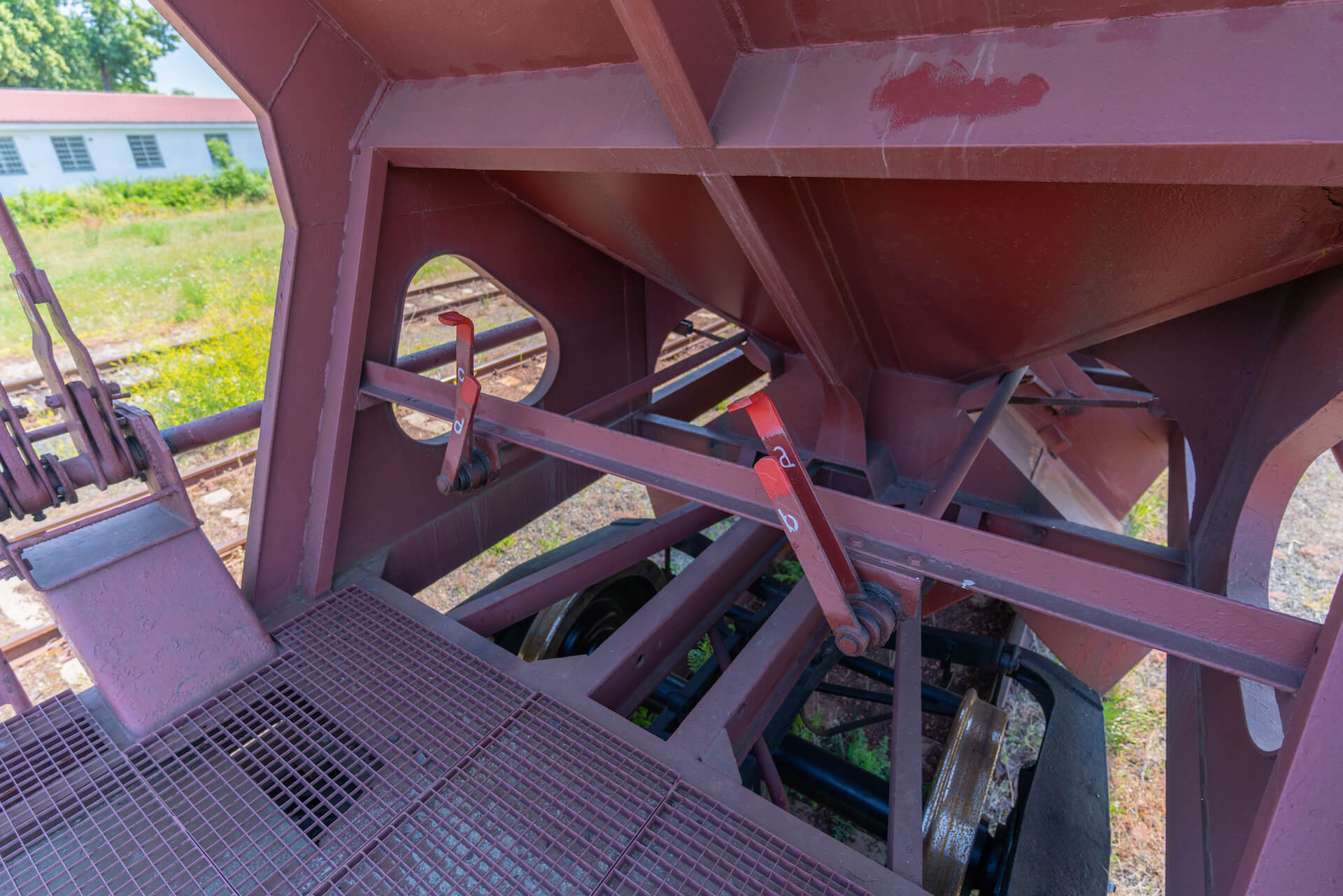

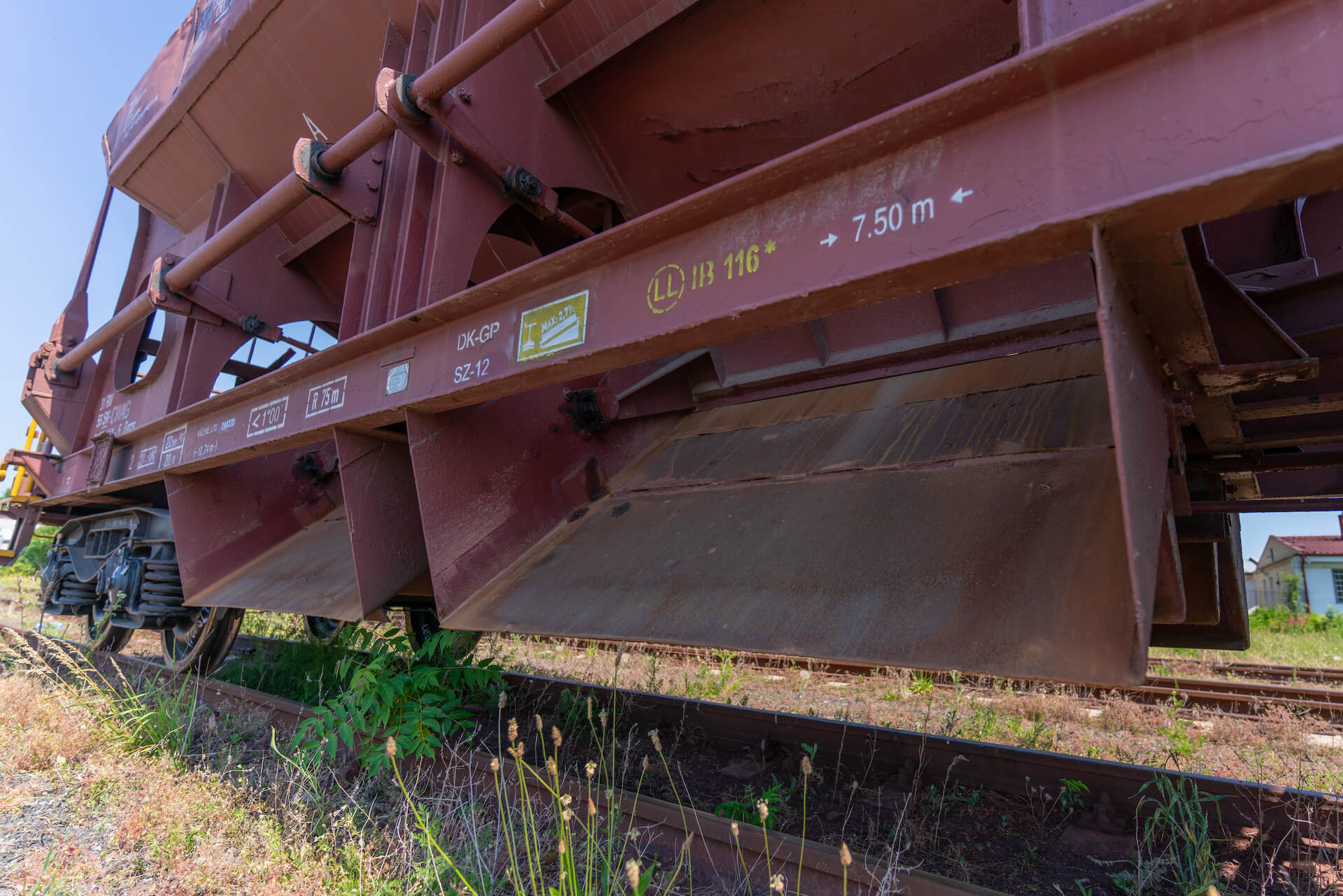

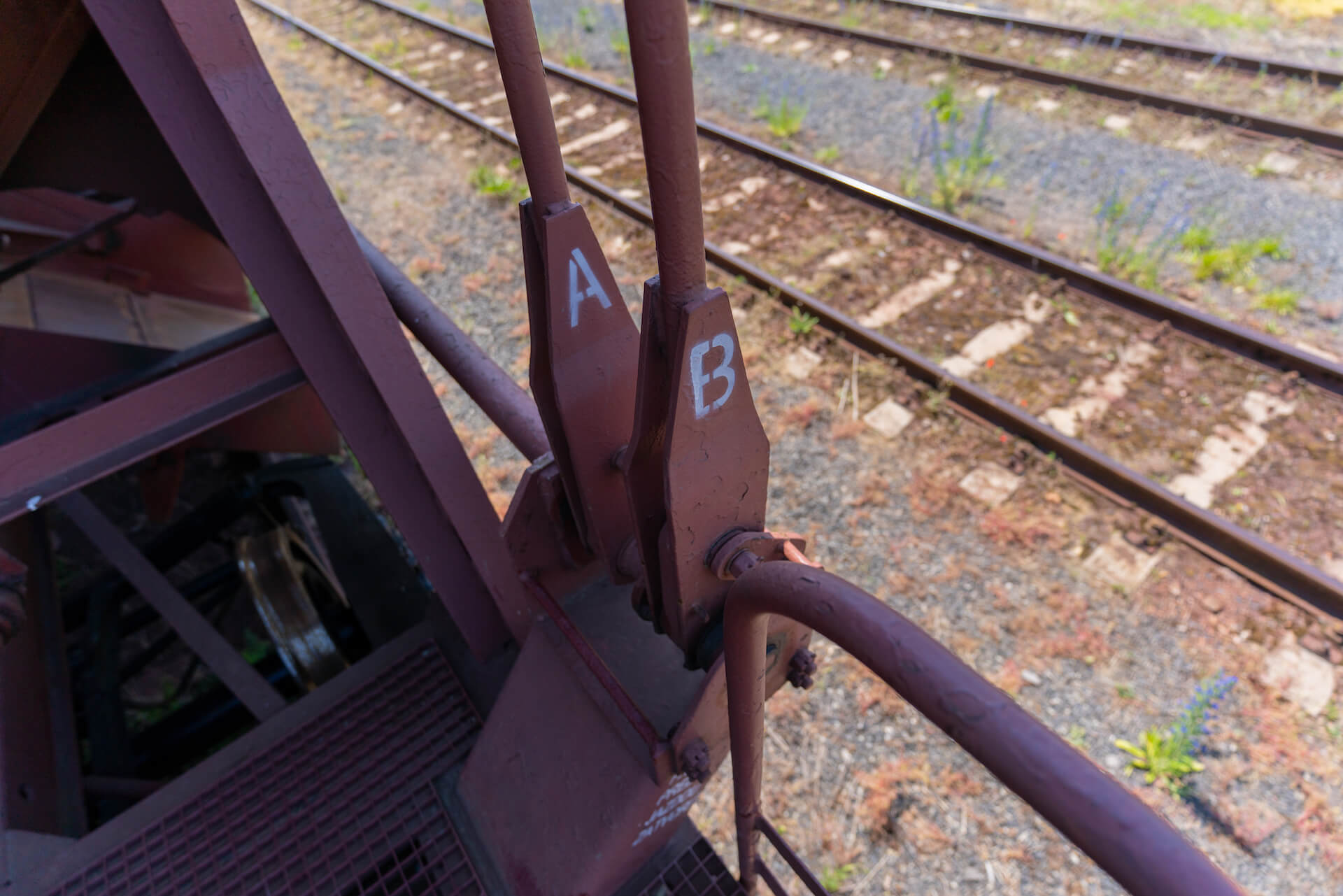

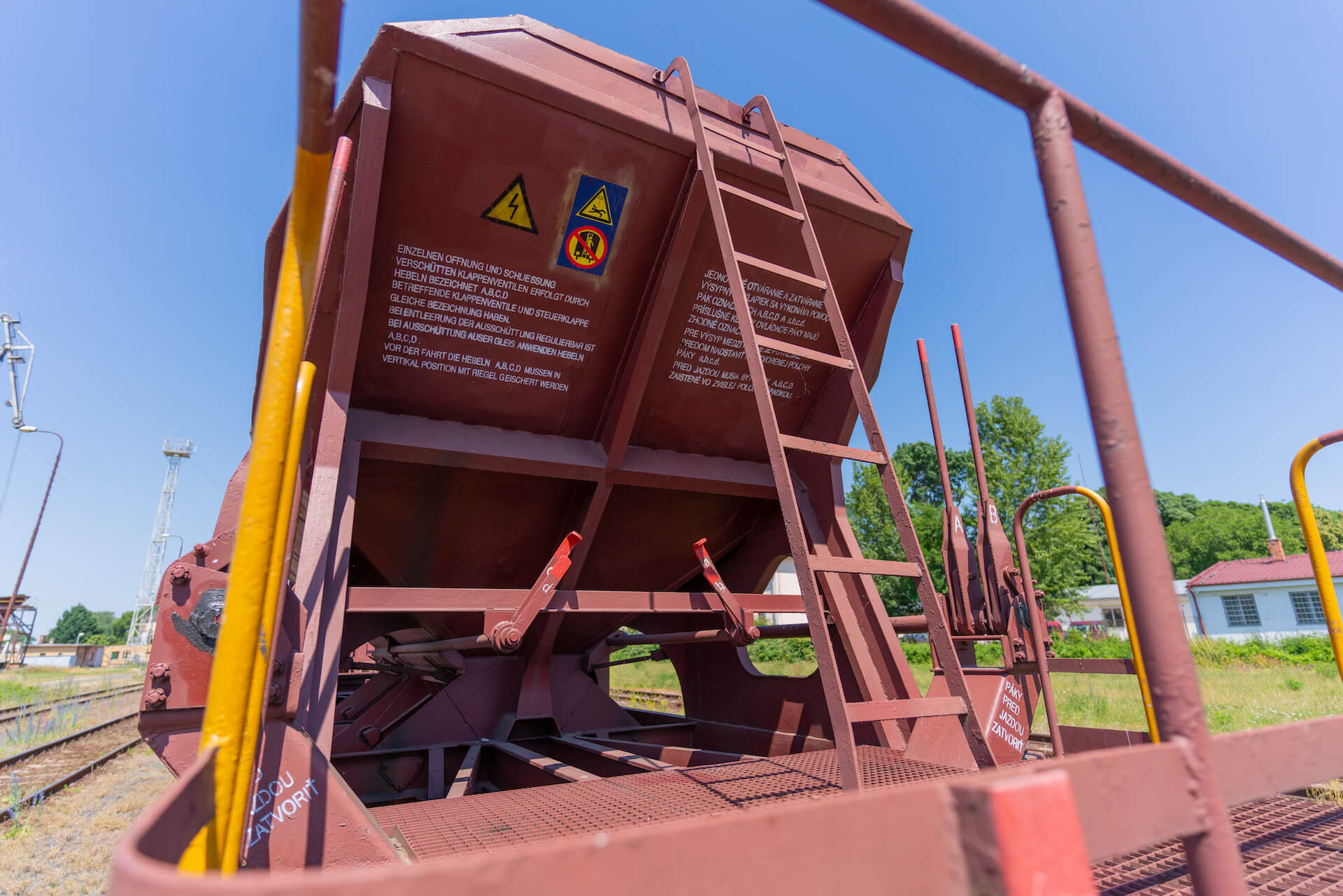

The wagon is equipped with two discharge flap valves on both sides operated from the platform. Platforms are located at both ends of the wagon, on one of which are the braking components including the spindle handbrake, on the other the control levers for the discharge flap valves.
Maximum axle load
20t
Chassis
Y25
Brake
DAKO
Blocks
LL – IB 116*
Maximum speed when loaded
100 km/h
Length over buffers
12,74 m
Bogie pivots distance
7,50 m
Loading length
8,40 m
Loading width
1,60 m
Loading volume
38 m3
Curve radius
R 75 m

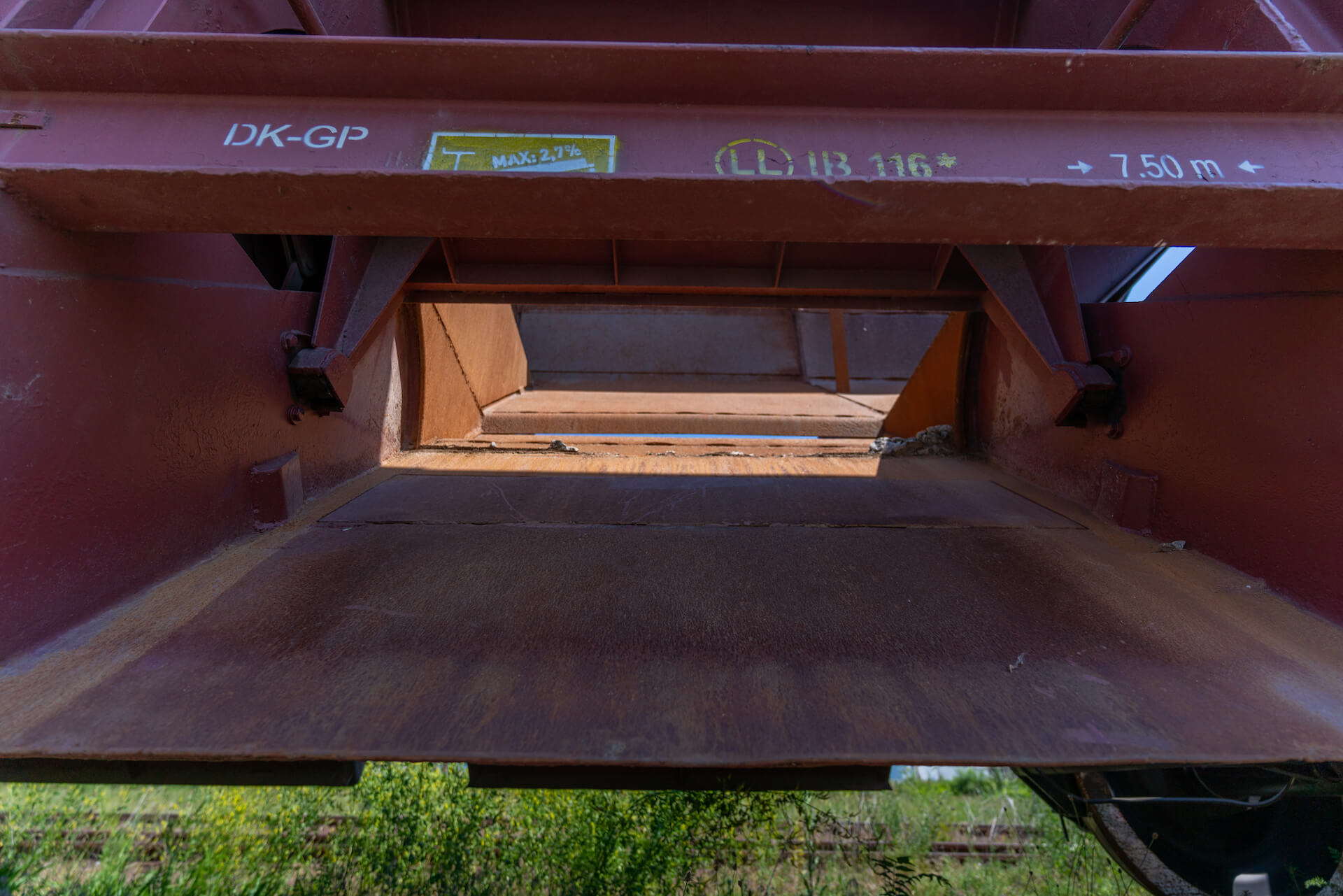

Discharge opening height over the top rail
0,38 m
Unloaded wagon weight
23.000 kg
Handbrake weight
20,0 t
Handbrake power
21,2 kN
Maximum gradient
2,7 %
